Progressing Cavity Pumps

Progressing Cavity Pumps

CIRCOR’ Allweiler® progressing cavity pumps generate a consistent‚ pulsation-free flow and gentle pumping action with low turbulence‚ even when faced with fluctuating working pressures and liquid consistencies.

Progressing cavity pumps are ideal for use in power plants and other common operations that involve pumping abrasive liquids containing solids and fibers‚ such as wastewater treatment plants.

Thinking about an upgrade?
And a free replacement stator?

ALLDUR® stators can extend the life of progressing cavity pumps and lower your total cost of ownership.

CIRCOR has developed the new ALLDUR® formula‚ specifically to maximize durability and efficiency of progressing cavity pumps. ALLDUR stators can extend pump-service life by up to 500%.

Learn more about ALLDUR® Stators

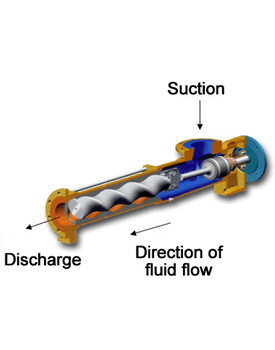

How Progressing Cavity Pumps convey fluids:

The ALLWEILER® progressing cavity pump is a rotary‚ self-priming positive displacement pump. The pumping elements are the rotating eccentric screw (rotor) and the fixed‚ abrasion resistant‚ elastomeric lined casing (stator). In the cross-sectional plane‚ both are in contact with one another at two points‚ forming two sealing lines along the length of the conveying elements. The fluid entering the suction area of the casing (typically located adjacent to the bearing frame) enters a cavity which is being formed as the rotor turns. As the pump shaft continues to rotate‚ the cavity is sealed and the captured process fluid is displaced axially along the length of the casing to its ultimate exit point at the casing discharge (typically located at the extreme non-drive end of the pump). This smooth‚ continuous pumping action ensures an even‚ uninterrupted volumetric output from the pump and minimizes pressure pulsations at the pump discharge.

Strengths of Progressing Cavity Pump technology:

  • Able to handle fluids contaminated with large percentages of abrasive solids
  • Simple and economical pump design requiring only one shaft seal
  • Low NPSHr / NPIPr due to large internal cavities and low speed operation
  • Gently handles shear-sensitive fluids like emulsions
  • Designs available to the latest edition of API 676
